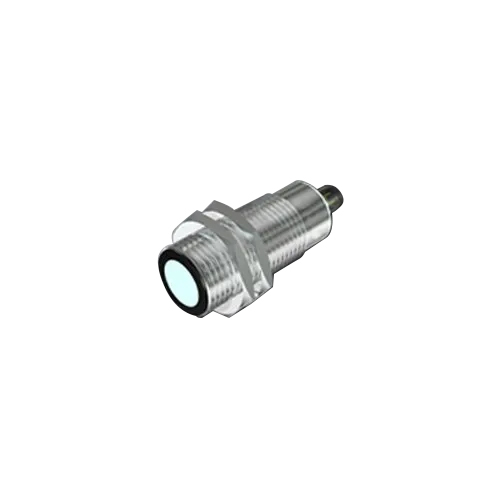

Ultrasonic Level Sensors Ru-18
Product Details:
X
Product Description
As a major Manufacturer and Trader of Ultrasonic Sensor Ru-18, our company has marked a trustful position in the market. Designed and developed with maximum precision from progressive technique and top-notch basic material, this is extensively demanded all over the region for its excellent performance, strong construction and less maintenance. Our offered Ultrasonic Sensor Ru-18 is duly tested by our quality checking experts on well-defined parameters so as to deliver flawless assortment at customers' end. Moreover, the estimated price for this sensor is approximately Rs 13,500 / Number.
Characteristic:
- Working area adjusting(windows teach or single point teach)by teach in button suitable for all models for all models for a fast coming into work.
Multi function LED indicator: output state, teach-in, NO/NC configuration. housing - IP67 protection
- It is convenient to detect transparent objects.
Specifications:
Output Method | Analogue output1~10V | RU18-DU90-VK1 | RU18-DU160-VK1 |
NPN-NO/NC | RU18-DU160-NK1 | RU18-DU160-NK1 | |
PNP-NO/NC | RU18-DU90-PK1 | RU18-DU160-PK1 | |
Maximum sensing distance | 900mm | 1600mm | |
Sensing ranger(sd): | 100~900mm | 150~1600mm | |
Beam angle: | 7 | 8 | |
Frequency transducer: | 300KHZ | 230KHZ | |
Repeat accuracy: | 0.50% | ||
Working Temperature: | -10C~ 60C | -20C~ 70C | |
Temperature compensation: | YES | ||
Operating voltage: | DC15~30V | ||
Thermal drift: | <5% | ||
Ripple: | 5% | ||
Leakage current: | <10A@VDC=30V | ||
Output current: | 100mA | ||
Minimum load resistance: | 1K(analogue voltage output/10V) | ||
Adjustment set pint: | Teach-in button | ||
Time delay before availability: | 300mA | ||
Output protection: | Polarity reversal;over voltage pules;short circuit | ||
Protection degree: | IP65 | IP66 | |
Housing material: | PBT | ||
Active heat material: | Epoxy resin | ||
Tightening torque: | Tightening torque 1Nm | ||
Weight: | 35g | ||
Storage temperature: | -35C~ 70C(without freezer) | ||
Steps
- Setting A:A-1:Put the object on position A;A-2:Press teach-in button 1 second;A-3:LED twinkles once, setting A ok./1,
- Setting B:B-1:Put the object on position B;B-2:Press teach-in button 1 second;B-3:LED twinkles three times, all setting completed.
