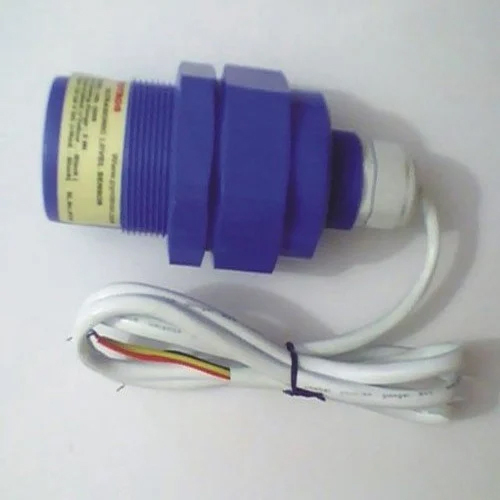

High Resolution Ultrasonic Level Sensor
Product Details:
X
Product Description
Characteristics of Ultrasonic Level Sensor:
- Wild array of power supply, capable to work under 12-24V DC
- Manual restore of factory-setting values
- Free adjustment of the spectrum of optional voltage or current output
- Direct display of weight inner side container after setting special gravity parameters
- Optional increment/difference distance measurement to measure distance or level
- 1-15 transmitted pulse intensity depending on working conditions
- Automatic indication turnoff during work to save power
- Free setting of full-scale start point and end point
- 4 - 20mA output, RS485S serial data output or 0 - 5V analog output
- 2 limit NPN collecting output settings of open loops, for level and liquid level control
- PC serial output and adapters, capable of PC networking
- Range : 0.3-10m blind zone 0.3m
- Frequency: 20 - 350KHz(differs with type)
- Output: 4-20mA (others optional)
- Minimum indication resolution 1mm
- Maximum impedance loaded>300
- Accuracy : +0.3x maximum range
- Operating pressure: Normal
- Operating temperature: Normal
- Indication : 4-digit 8-segment 0.36 "LED/LCD
- Keyboard: 3-digit SMT tactile keys
- Installation: G1 1/2 or 47mm
- Operating voltage: DC12-24V
- Overall dimension: 79mmx210mmxG1 1/2
- Power consumption: <1.5W
Additional Information:
- Item Code: MH
