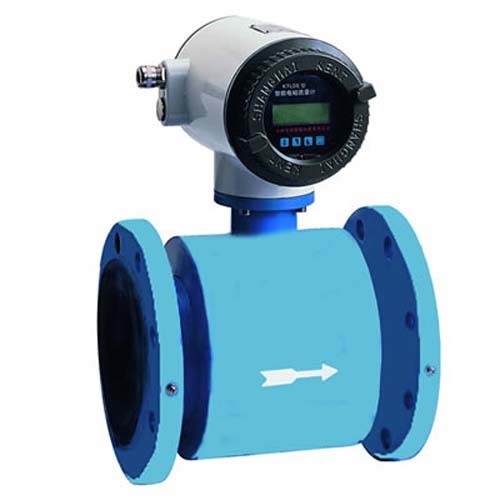

Electromagnetic Flow Meter

Product Description

Model intelligent electromagnetic flowmeter is a fully intelligent electromagnetic flowmeter developed by our company with the most advanced technology. It is very different from the old analog or non-intelligent electromagnetic flowmeter, especially in service life, appearance, reliability, stability and measurement accuracy. LDBE intelligent electromagnetic flowmeter core uses high-speed central processing unit, equipped with backlight and wide temperature LCD in Chinese and English. It has complete functions, intuitive display and more convenient operation. In addition, we have designed a 4-6 multi-electrode structure, which further ensures the accuracy and stability of measurement, meets the field conditions without grounding ring, and reduces the workload of installation and maintenance.

Electromagnetic flowmeter is a flowmeter with high precision, high reliability and long service life, so we pay attention to every aspect of design, material selection, process and testing . The characteristics of this product are as follows:

1. The measurement accuracy is high. The induction voltage signal of the sensor has a linear relationship with the average velocity of flow. The measurement is not affected by the changes of density, viscosity, temperature, pressure and conductivity of the fluid.

2. Long service life, no movable parts, no obstruction parts in the pipeline, no pressure loss in the measurement.

3. Easy to use, easy to operate, high-definition backlight LCD display, English menu operation, users or according to the needs of the site, online range modification.

4. With RS485,

5. With the self-test and self diagnosis function.

6. Programmable low frequency rectangular wave excitation improves the stability of flow measurement and reduces power loss.

7. With 16-bit embedded microprocessor, the operation speed is fast and the precision is high.

8. Full digital processing, strong anti-interference ability, reliable measurement.

9. It has two-way flow measurement function and can display positive and negative flow.

10. The parameters are set flexibly and the flow converter has interchangeability.

echnical Parameters

Nominal diameter DN series (mm):

Pipeline PTFE lining: 10,15,20,25,32,40,50,65,80,100,125 150,200,250,300,350,400.450,500,600.

Pipeline Rubber lining: 40,50,65,80,100,125,150,200,300,350,400,500,600,800,1000,1200

Note: Special specifications can be customized
