Analog Signal Isolator

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

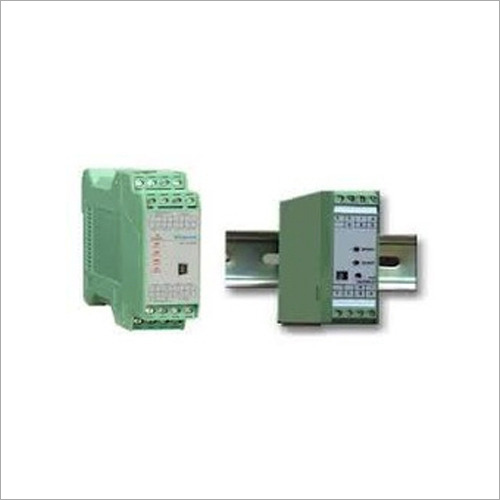

Signal Isolator is offered by us at estimated price of Rs 3,500 / Number in market. With maximum 04 parallel free outputs individual isolator & converter DIN rail modules can be offered for single input. Based on V/F & F/V linear circuit, this is made out of high grade ABS material and elements with modern construction method that ensure its excellent accuracy, strong construction, superb working life and low maintenance. The Signal Isolator is checked by domain experts and thereafter delivered to clients in protective packaging within given time.

Technical Data:

Design	Based on F/V and V/F linear circuit.
Input types	RTD (Pt-100) / 2 or 3 wire or Thermocouple (J/K/ Types - type to be specified) or mV, mA input or Load cell, pressure sensor, pH/ORP sensor etc. generating DC current or voltage. AC input - Current (through external CT) (0-1)A or (0-5)A or Voltage (0-110)VAC or (0-230)VAC or 415VAC Frequency input DC levels of clock pulses of max. 10KHZ. @ (12-24)VDC
Range	User may specify the required temperature range (for RTD or T/C input). For other inputs the required calibration range can be specified.
Output	(4-20) mA, (0-20) mA, (0-1) VDC, (0-5) VDC, (0-10) VDC, Frequency (0-1)KHz, (0-5)KHz, (0-10)KHz etc. proportional to the specified input range. For current output, RL (max.) = 500 Ohms. For voltage output, RL (min) = 10K Ohms.
No. of Outputs	Maximum 4 parallel independent outputs can be provided for single input.
Accuracy	For Thermocouple and RTD Input, the calibration of output is done for the best straight line fit to give accuracy of /- 0.5% of the range. For other input the linearity depends on the input signal, where output accuracy is absolute to the input.
Calibration	On site calibration facility through ZERO and SPAN presets accessible to the user.
Isolation	Input and Output are optically isolated for DC and frequency inputs and galvanically isolated for the AC inputs.
Isolation Voltage	Greater than 2.5KV.
Mounting	DIN rail mounting ABS enclosure.
Supply	90 -260 VAC, 50/60Hz or 24VDC @ 200mA
Size	65(W) x 80(H) x 125(D) mm.
